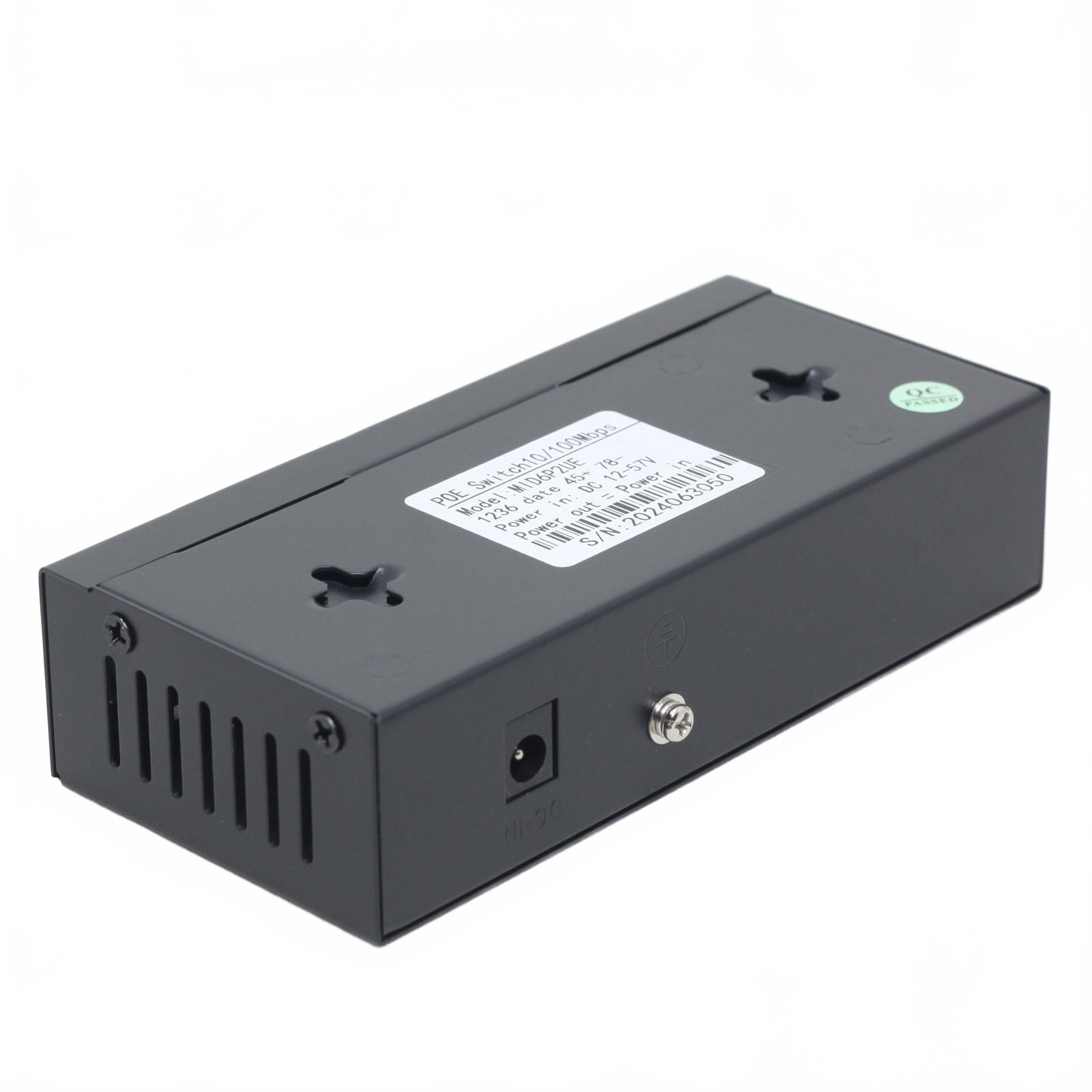

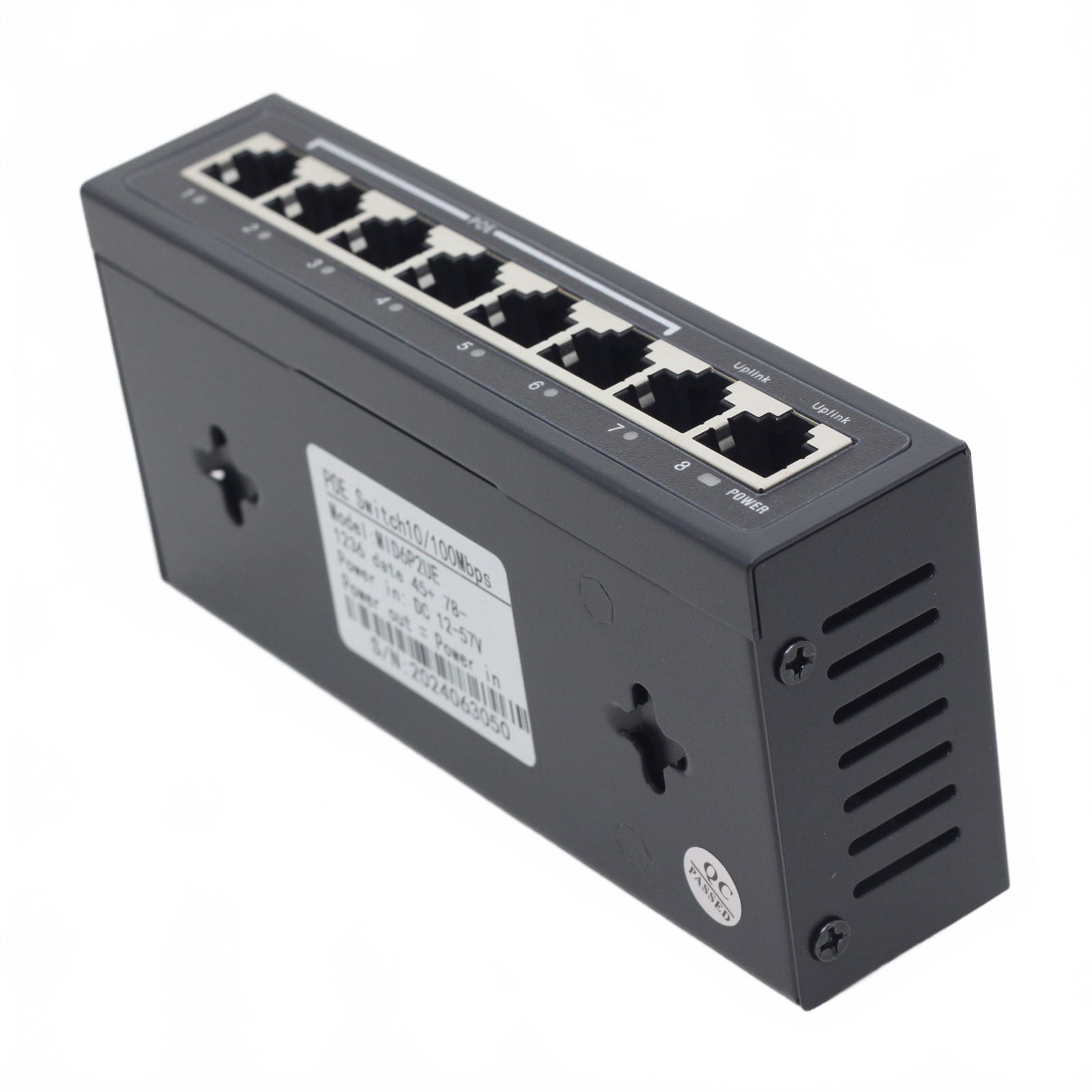

DSLRKIT 250M 8 Ports 6 PoE Switch Power Over Ethernet without Power Adapter

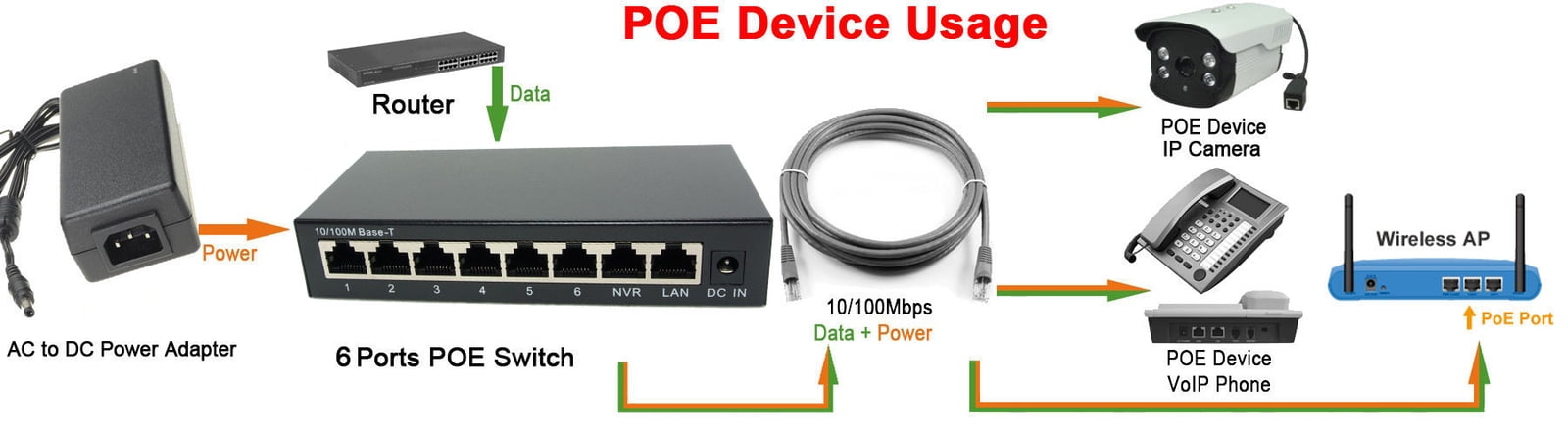

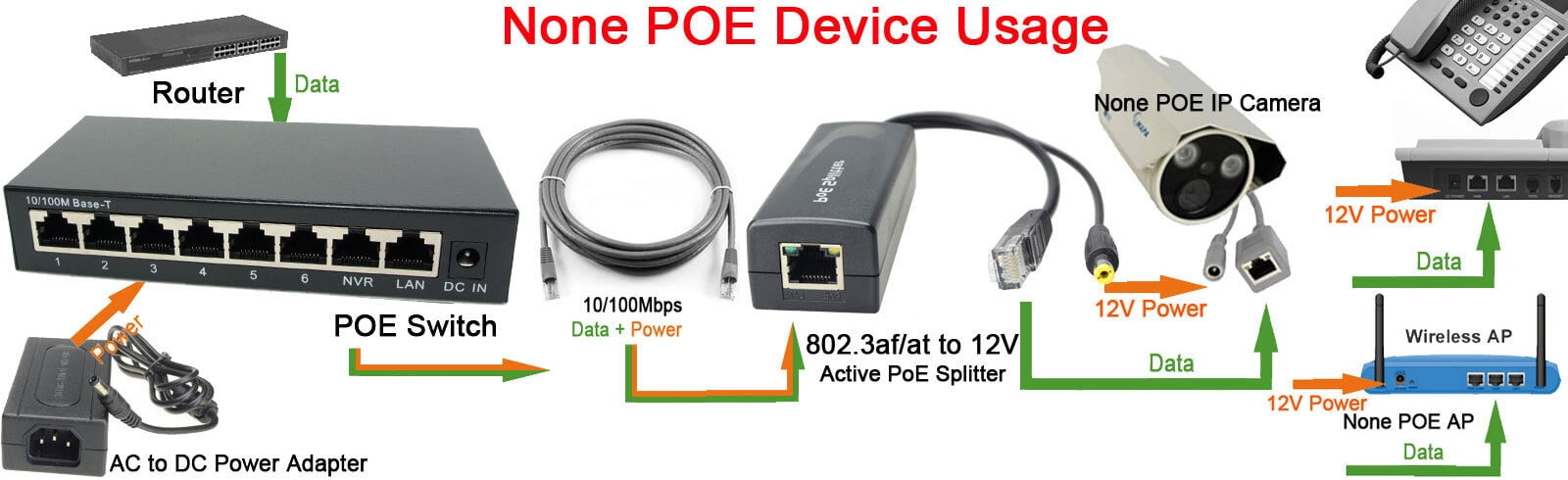

DSLRKIT MID6P2UE&nbsp;Passive PoE Injector Switch<br>&nbsp;<br>Support&nbsp;EXTEND mode, max Network Cable length to&nbsp;250 meters<br>Power supply not included<br>Supports 12~57V DC power supply(Maximum current 4 amps)<br>DC IN port 5.5X2.1mm, inside positive (+)&nbsp; outside&nbsp; negative (-)<br>8 Ports (2Uplink,&nbsp;6 PoE)&nbsp;10/100Mbps<br>Midspan Mode-B&nbsp;Unsolicited Power(4,5+/7,8-)<br>Wall Mount<br>NOTE. When&nbsp;EXT&nbsp;mode enable, the Max bandwidth for the&nbsp;Power Link (PoE) port 1-4&nbsp;network port will be&nbsp;reduced to 10Mbps for each one. Please check your IP CAMERA's&nbsp; bit stream setting. We recommend the value does not over 8Mbps(8192Kbps). <br>(The up-link is not affected, it will always working at 100Mbps max speed)<br><br>【IMPORTANT PORT USAGE GUIDE】<br>PoE Output Ports (Port 1 to Port 6):&nbsp;These 6 ports provide&nbsp;Passive PoE power. The output voltage depends on the DC power adapter you use (compatible with 12-57V).&nbsp;ONLY&nbsp;connect your compatible Passive PoE devices (like specific IP cameras or APs) here.&nbsp;Never&nbsp;connect any non-PoE or Gigabit device (like a computer, main switch, or router) to these ports, as it will cause damage.<br>Uplink Ports (Port 7 &amp; Port 8):&nbsp;These 2 ports are&nbsp;data-only ports&nbsp;and do NOT provide any PoE power.&nbsp;ALWAYS&nbsp;use these ports to connect the switch to your main network router or another central switch.<br><br>This item do not include the power adapter, you need to buy an extra power adapter according to your requirement.&nbsp;<br>So it only suitable for PoE professional customers.<br>Please&nbsp;select&nbsp;the&nbsp;correct&nbsp;Power&nbsp;adapter&nbsp;by&nbsp;POE&nbsp;device，<br>802.3af/802.3at(PoE+)&nbsp;PoE&nbsp;device,&nbsp;We&nbsp;suggest&nbsp;DC&nbsp;48Vor52V&nbsp;power&nbsp;adapter.<br>UBNT 24V POE device,&nbsp;We&nbsp;suggest&nbsp;DC24V&nbsp;power&nbsp;adapter.<br><br>If your camera is with word “12V/PoE” as this picture shows, then please select 48V(or 52V)&nbsp;Power Adapter, do not select 12V Power Adapter.<br><br>Because "12V/PoE" means it can offer power supply to camera via 12V DC port or 48V PoE Ethernet port:<br>This is an Passive Power Over Ethernet of 8&nbsp;port 10 / 100Mbps-T Ethernet switches, including 6 unsolicited PoE Ethernet ports and 2&nbsp;Uplink ports.&nbsp;DC port apply 12~55V power supply adapter(not included),&nbsp;any one of the 6 port can provide output power, each Ethernet port can provide network transmission speeds of up to 10 / 100Mbps , with Cat5 / 5e / 6 network cable.<br>This POE switch only support 10/100M connection, PoE ports do not support Gigabit ethernet connection, because&nbsp; "1~6" port using 4,5,7,8 pin as power transfer, Please&nbsp;<br>do not connect any "NONE PoE gigabit ethernet device and Uplink device" on "1~6" port, this will damage your device.<br>Gigabit(10/100/1000Mbps) ethernet device&nbsp;<br>Please do not access "Power Link port" this will damage your device.<br><br>Features:<br>8 x 10/100Mbps Auto-negotiation Fast Ethernet RJ-45 ports with 6-Ports PoE function<br>Support EXT&nbsp;mode, max Network Cable length to 250 meters.&nbsp;<br>Midspan Mode-B Unsolicited Power(4,5+/7,8-)<br>Supports 12~57V DC power supply&nbsp;&nbsp;<br>Each port supports auto MDI/MDIX, so there is no need to use cross-over cables.<br>Full/half duplex transfer mode for each port.<br><br>Specification:<br>ALL Port:<br>Standard 10/100Mbps Ethernet port. Support 10Mbps Ethernet and 100Mbps Fast Ethernet, can operate in full-duplex or half-duplex mode,must work with&nbsp;4 pairs UTP Cat5/5e/6 cable。<br><br>Power Link&nbsp;Port&nbsp;1-6:<br>any supported unsolicited power on pairs 45-78 pins compliant Powered Devices (PDs)<br>Power LED<br>LED ON: power on. LED OUT: power off<br>Green&nbsp;Light LINK/ACT<br>LED ON Indicates the port is connected to a network device and has been started<br>LED OFF Indicates that this port is not connected to a network device or has not been started<br>Standard<br>IEEE 802.3 10BASE-T Ethernet<br>IEEE 802.3u 100BASE-TX Fast Ethernet<br>IEEE 802.3x Full-Duplex flow control<br>Protocol<br>CSMA/CD Ethernet<br>Data Transfer&nbsp;Rate<br>Ethernet: 10Mbps (Half Duplex)&nbsp;20Mbps (Full Duplex)<br>Fast Ethernet: 100Mbps (Half Duplex)&nbsp;200Mbps (Full Duplex)<br><br>Network Media(Cable)<br>10Base-T(EXTEND mode): UTP category 5e, 6 cable (maximum 250m) EIA/TIA-568 100Ω STP (maximum 250m)<br>100Base-TX:UTP category 5, 5e cable (maximum 100m) EIA/TIA-568

• Support EXTEND mode, max Network Cable length to 250 meters
• This item do not include the power adapter, you need to buy an extra power adapter according to your requirement.
• 8 x 10/100Mbps Auto-negotiation Fast Ethernet RJ-45 ports with 6-Ports PoE function
• Supports 12~57V DC power supply
